ARE YOU USING "ROTARY VANE VACUUM PUMP" & NOT HAPPY WITH IT?
ARE YOU A VICTIM OF ?

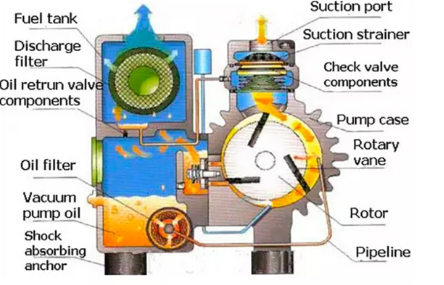

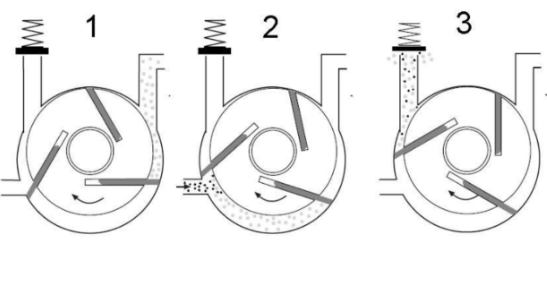

What is the working principle of a Rotary Vane Vacuum Pump Pump?The Rotary vane vacuum pump is based on the principle of volume reduction, the entire cylinder housing is immersed in Oil and Oil acts as a sealer to reduce/minimise the slip losses between the rotary vanes and the stationary cylinder. This ensures tight sealing and minimal war loss on the blades. Oil lubrication can only be achieved by differential pressure between the housing and oil separator housing. Some oil pipes are used between the housings to achieve this. A cylindrical housing houses a rotating rotor. It is placed eccentrically so that the top of the housing touches the top. Centrifugal force is applied to the housing's wall by the blades. This creates three chambers that capture air. The vacuum chamber (suction) opens when the first chamber is opened. The rotor rotates and the next blade closes the chamber. (And opens directly next one). At this point, the air volume between the blades is at its maximum. The volume reduction of the oil gas mixture causes it to be compressed and then blows out into an oil separator housing. |
Some pumps are equipped with outlets valves that stop backflow of air after the pump has reached its maximum pressure or is turned off. The complex design of the oil separator housing allows oil to be mechanically separated from gas. The oil sump is where the oil is collected. This removes 95-98% oil from the air. The oil-gas mixture is then passed through fine filter elements to remove any small oil particles. These oil particles are then reintroduced to the oil circuit via a float valve. You can blow virtually oil-free gas through either the air outlet, hoses, or pipes. |
Super Vane is vacuum packages offered by Everest Vacuum as an alternative to Dry Vacuum Systems. These vacuum systems are a combinateion of a Roots vacuum Pump combined with a Rotary vane Vacuum Pump which are typically designed for being operated as semi-dry vacuum systems for clean vacuum applications. They are cost-effective solutions where contamination from process vapor is not a threat.
